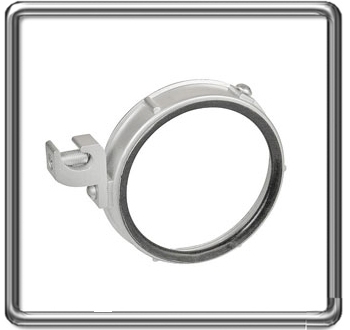

Grounding Bushing Insulated (Malleable Iron)
Material：Malleable Iron
Finish：Galvanized
Type：Insulated
Standard：UL 514B
Thread：NPSL
Size: 1/2” to 4”
Usage: Used with locknut to terminate threaded Rigid or IMC Conduit to an outlet box.
Grounding Bushing Insulated (Malleable Iron)
|
CAT# |
SIZE |
|
BU050G |
1/2" |
|
BU075G |
3/4" |
|
BU100G |
1" |
|
BU125G |
1-1/4" |
|
BU150G |
1-1/2" |
|
BU200G |
2" |
|
BU250G |
2-1/2" |
|
BU300G |
3" |
|
BU350G |
3-1/2" |
|
BU400G |
4" |
Benefits:
-
lay in lug style threaded grounding bushings make it easy to insert a grounding wire.
-
They feature dual rated aluminum grounding lugs that may be used with both copper and aluminum grounding conductors.
-
Their insuliner temperature is rated at 150° C, and their construction ensures mechanical protection for the raceway.
-
Threaded grounding bushings are zinc electroplated for excellent corrosion protection in damp locations.
